Description

Description

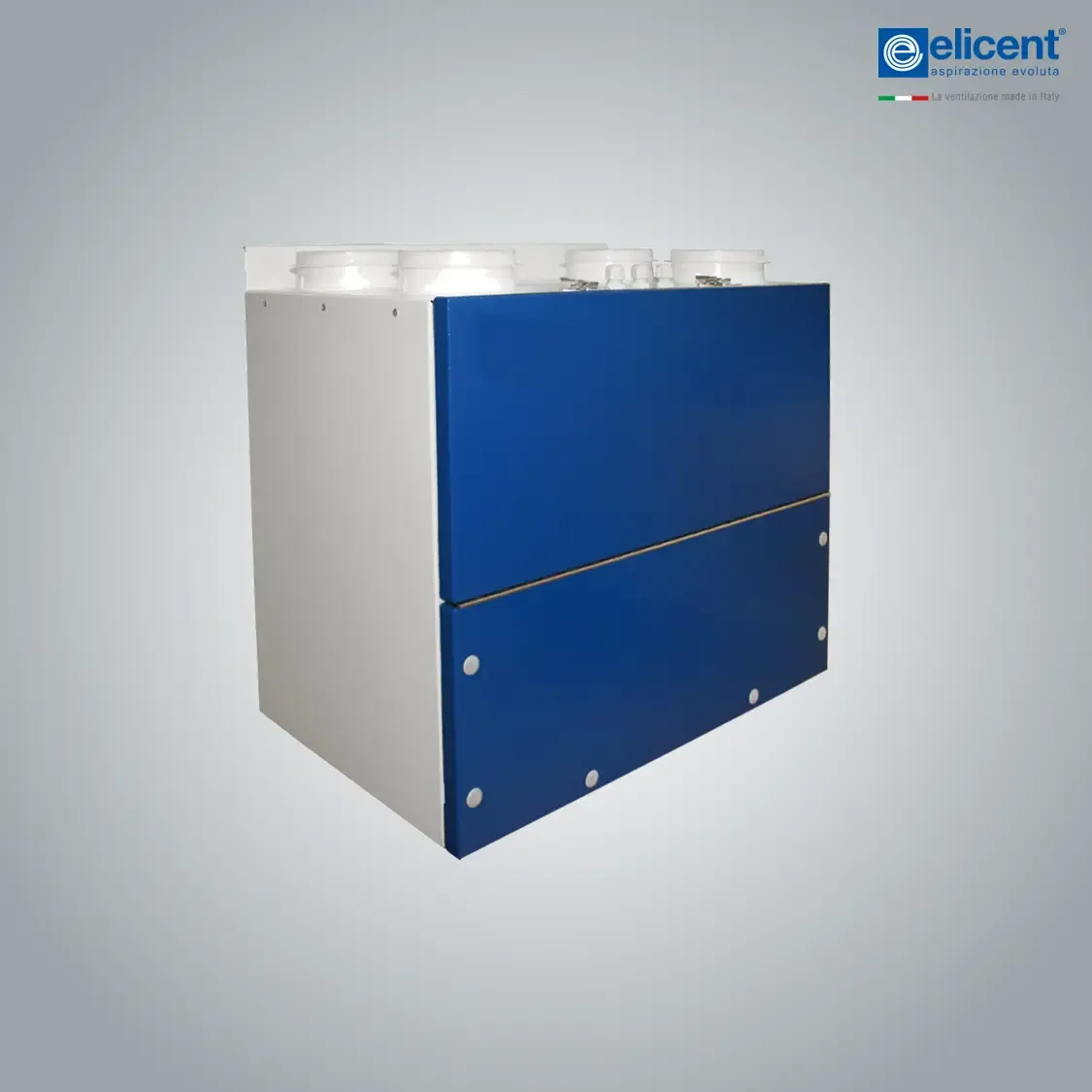

The REC 320 TC is a very compact MHRV unit, ideal to fit in cupboards and small cabinetries. Its highly efficient heat-exchanger and EC-fans are powerful enough to supply large apartments and small houses with fresh air, while removing bathroom and kitchen air.

Highlights

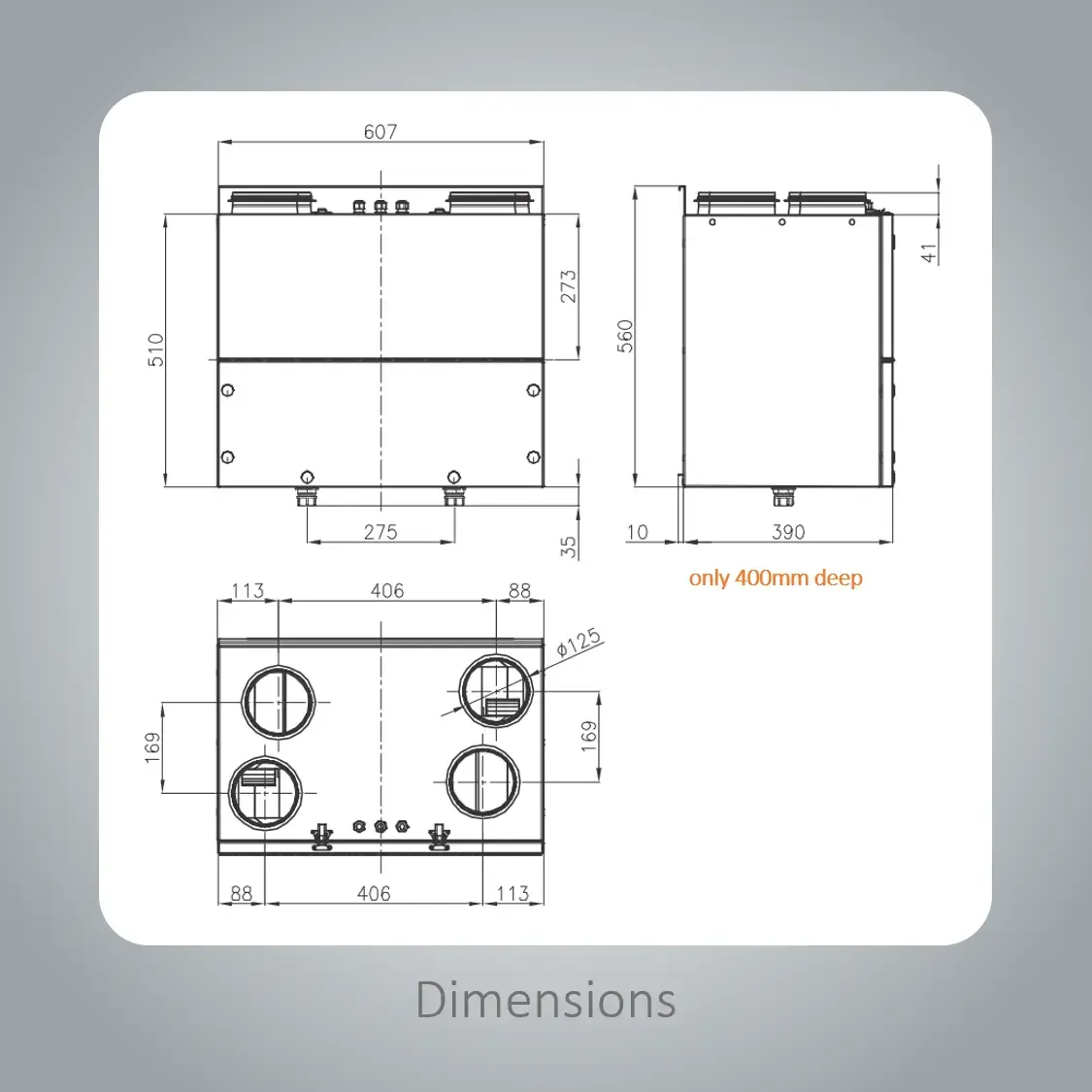

• Compact design – only 40cm deep
• Silent operation (26dB(A), 3m)
• Wall mounted, top connection
• Fresh Air for up to 6 rooms
• Dedicated Bathroom and Kitchen Extraction
• Summer-Bypass (Free Cooling Mode)
• Variable Speed (EC) Fans
• 2-year warranty

Typical Application

• Apartments, Townhouses, Small Houses
• When only restricted space for unit is available
• Includes dedicated bathroom, kitchen and laundry extraction

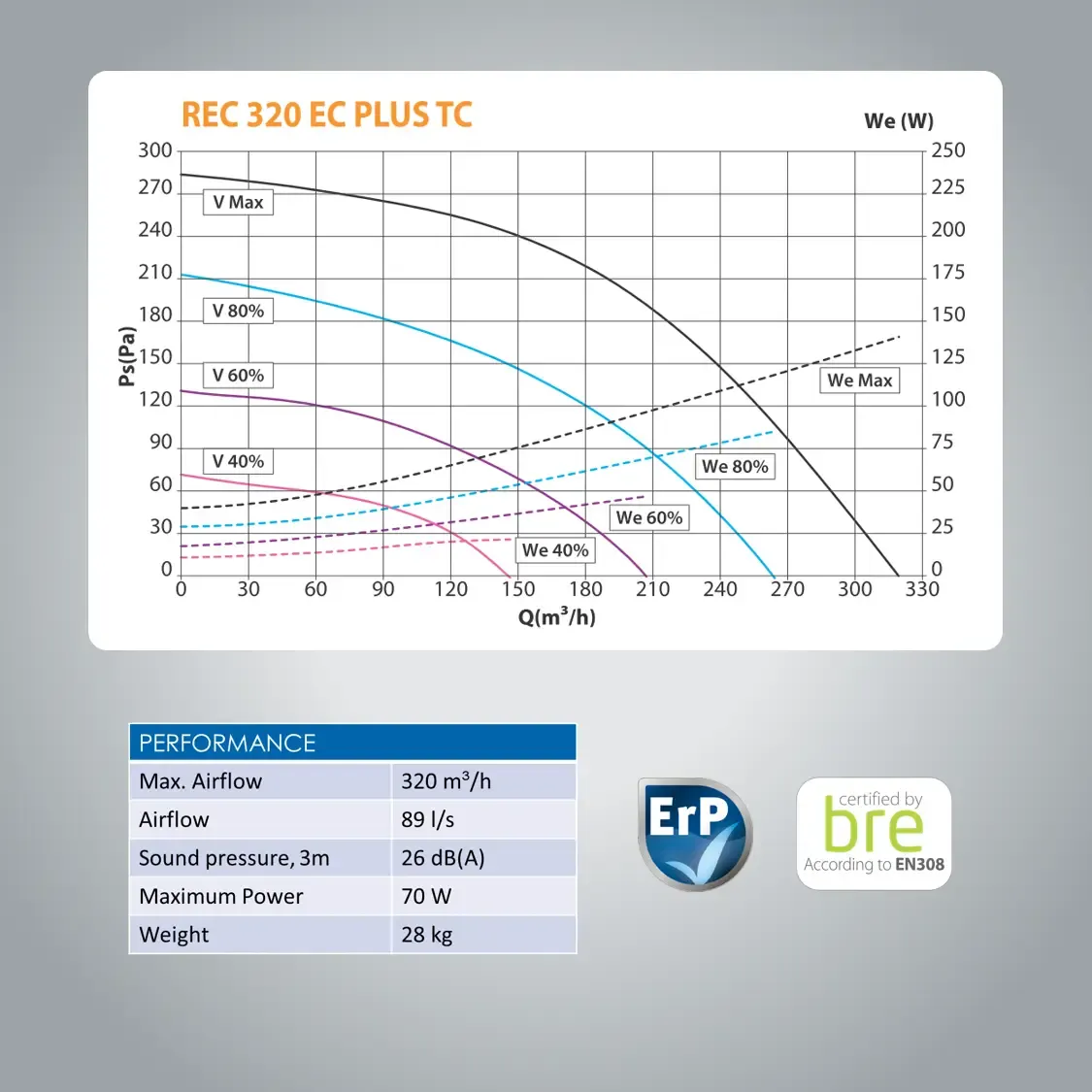

Performance

• Airflow: 320 m³/h (max.)
• Pressure: 280 Pa (max.)
• Example:
  Duty point: 210m³/h @ 180Pa
  House: 120m² with 2.6m ceiling
  -> 0.67 air changes per hour

Version

• Elicent REC 320 TC

In the Box

• MHRV Unit

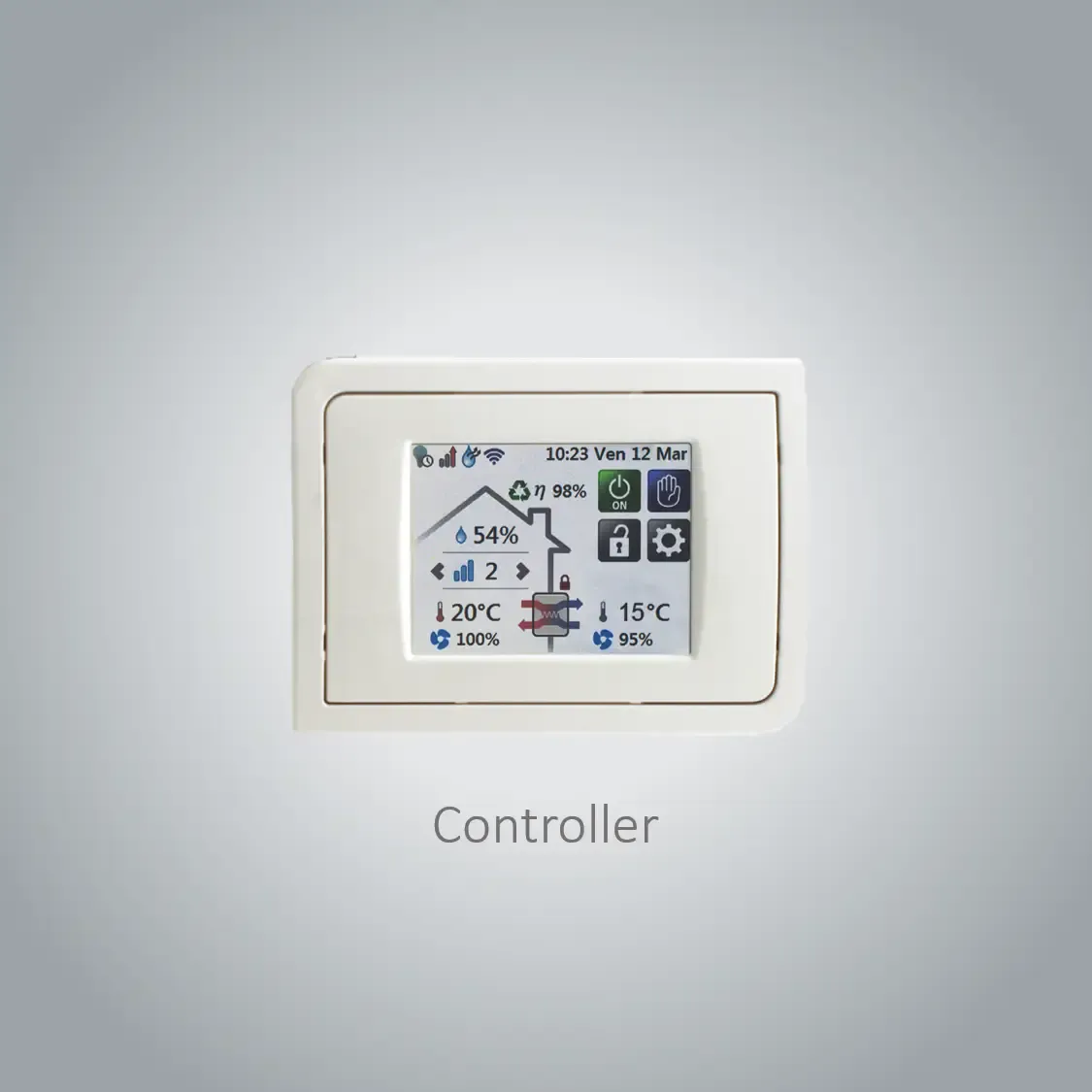

• Touchscreen Controller
• User manual

Typically required for wall installation

• Tools and consumables (e.g. duct tape and screws)
• Mounting to hang unit earthquake safe (e.g. steel rods)*
• Indoor Duct System (Recommended: BlauFast 75)
• Ducting to outside (Recommended: EPP 150mm)
• Outdoor grill/ Trade seal*

*Check with local council for acceptability
