Elegance is a series of axial fans with a stylishly Italian designed front cover to exhaust air, suitable for short-length ducting and wall or ceiling installation.

Highlights

• Elegant design – no visible grill
• Axial duct fan – 150 mm

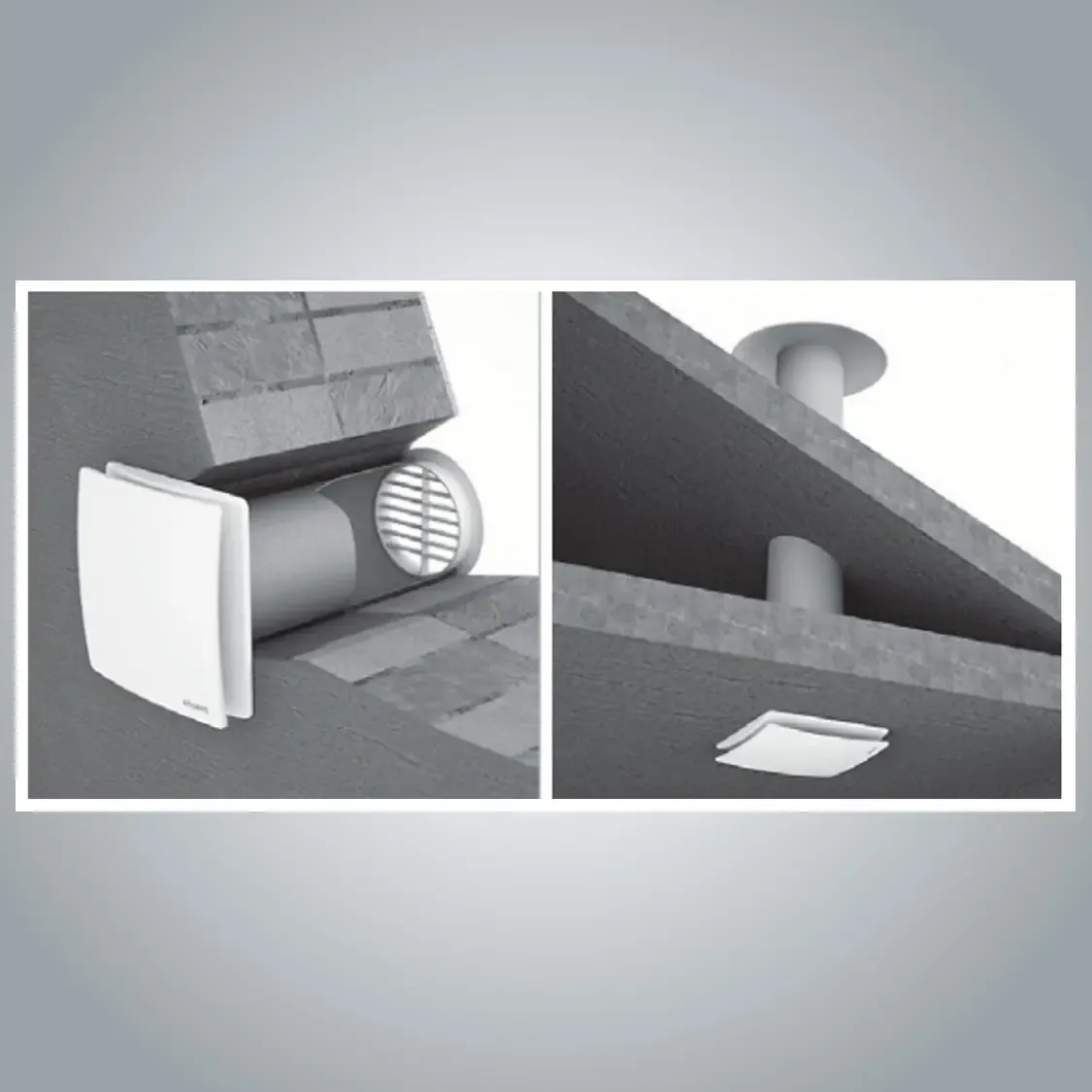

• Wall or ceiling mounted
• High airflow (310m³/h max)
• Duct length up to 3m
• Long life ball bearing motor

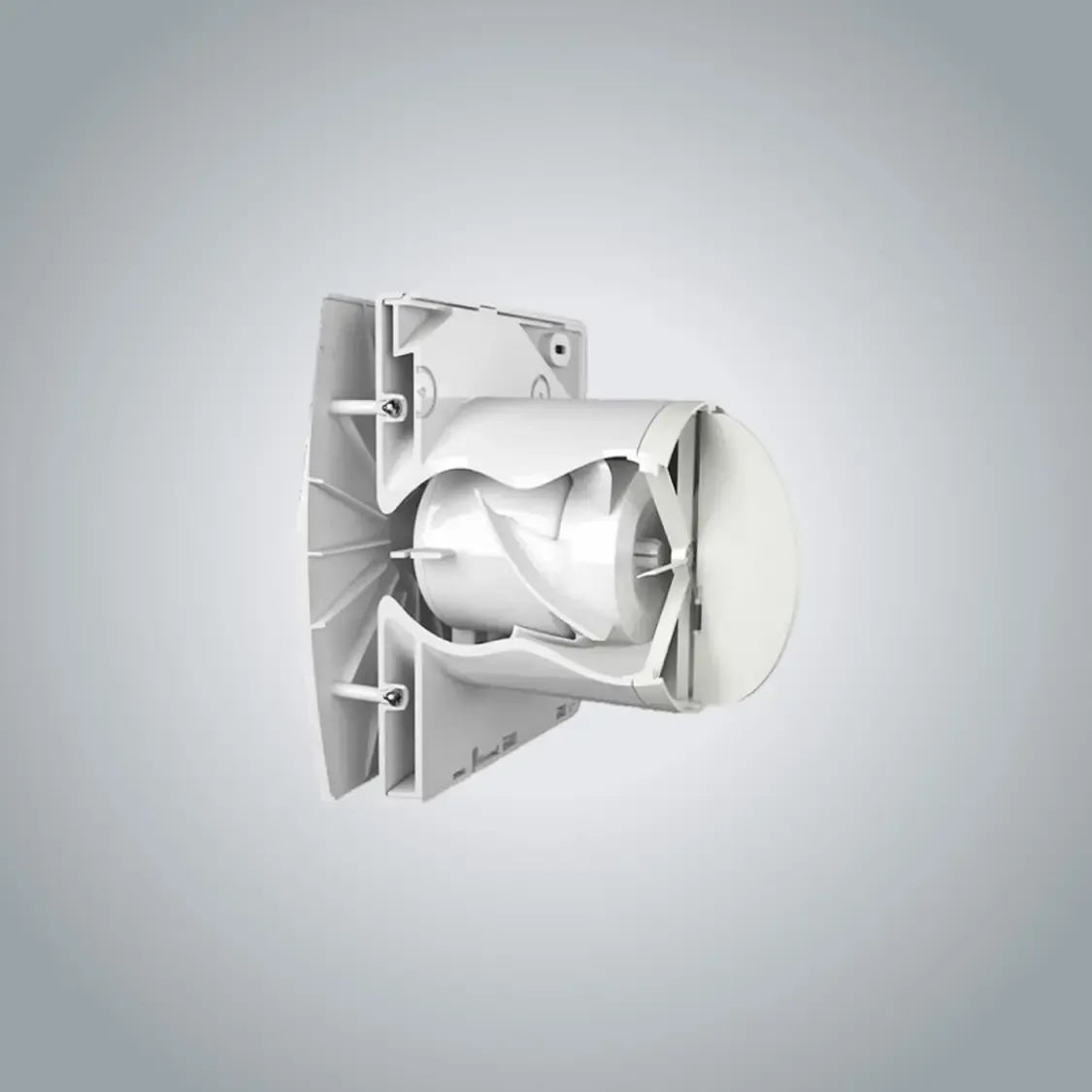

• Back-draught shutters
• Meets G4 and Healthy Home Standard
• 3-year warranty

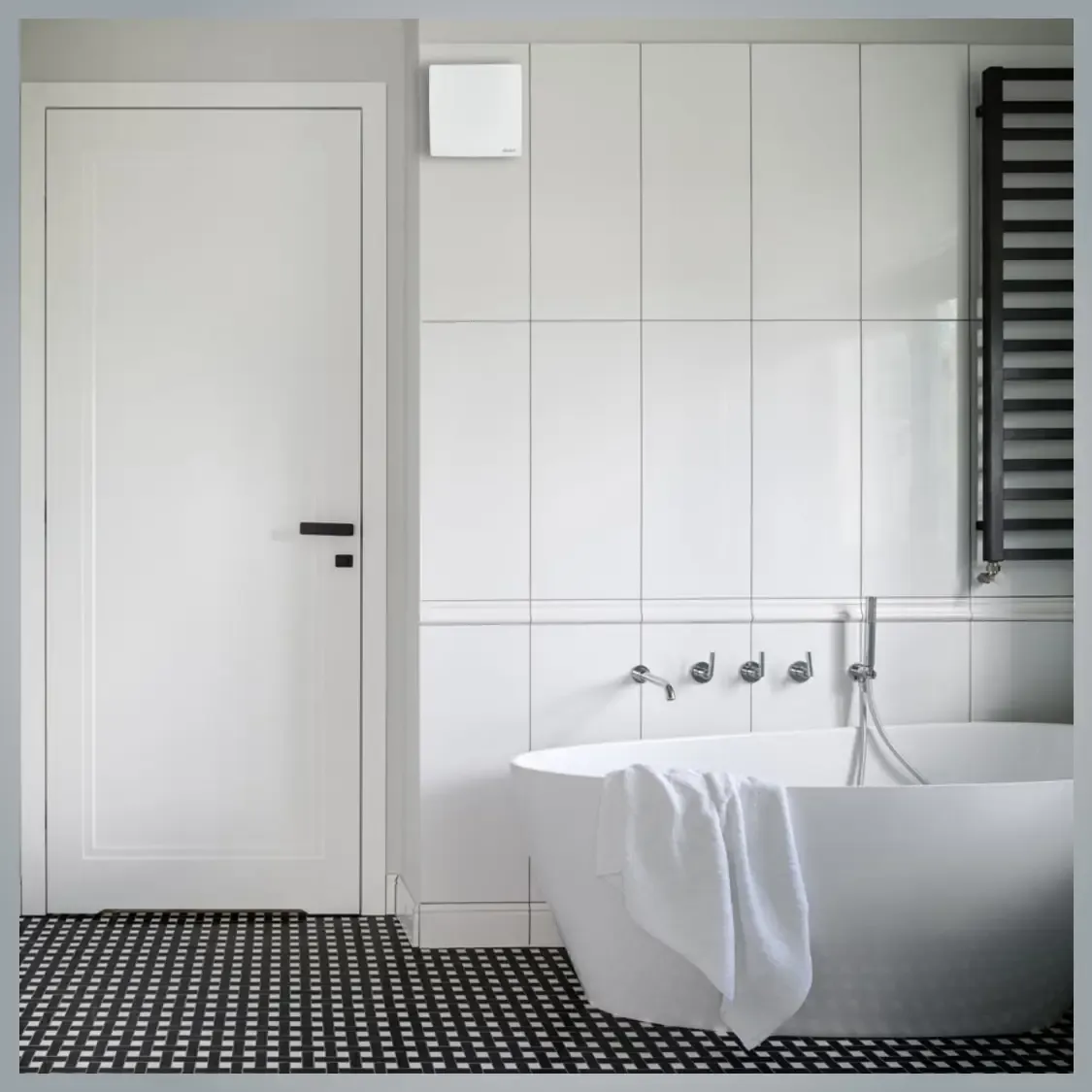

Typical Application

• Toilet / WC
• Bathroom / Shower-room
• Laundry / Utility room

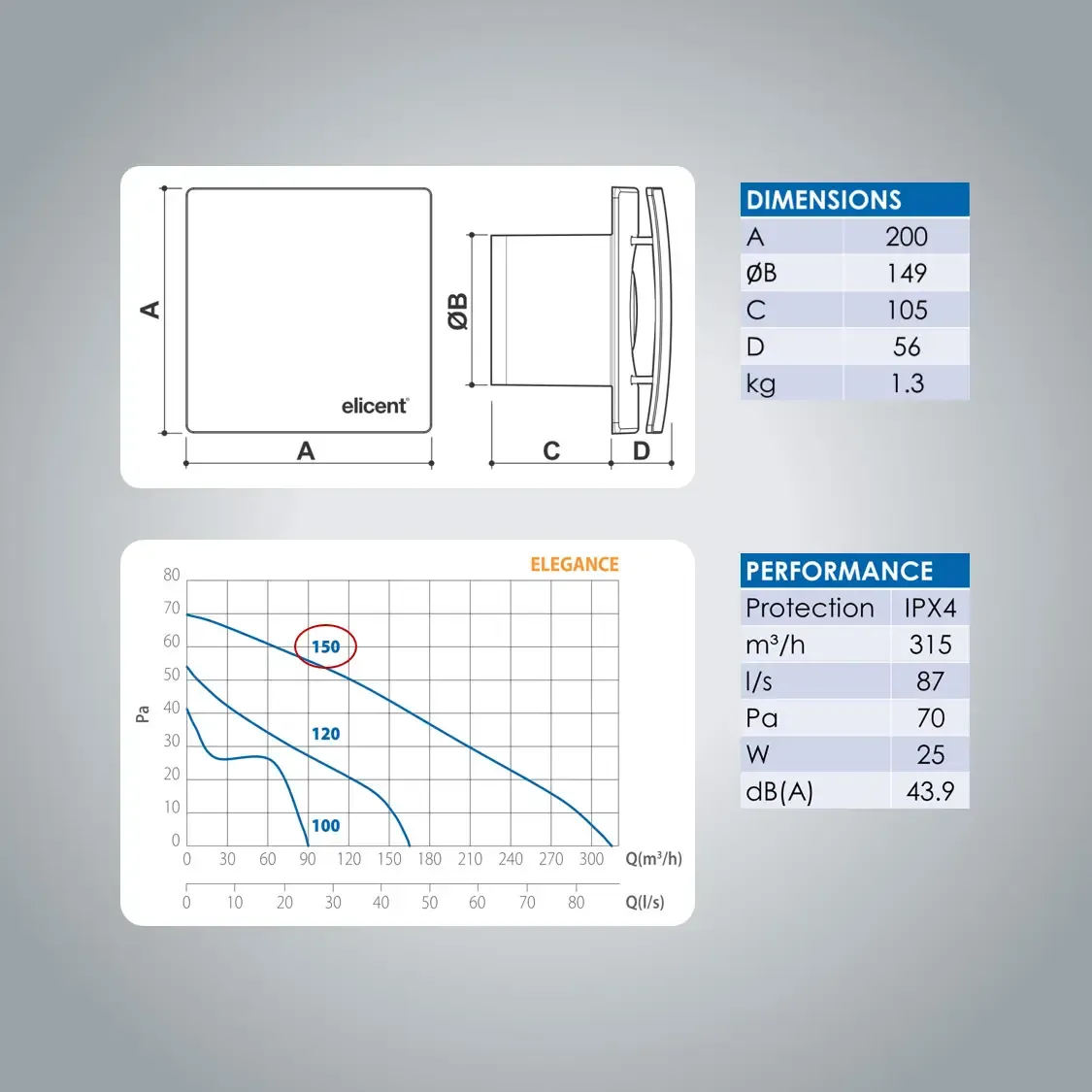

Performance

• Airflow: 310 m³/h (max.)
• Pressure: 70 Pa (max.)

Versions

• ELEGANCE 150 Base
  For on/off (wall) switch (not included)
• ELEGANCE 150 Timer
  For on/off (wall) switch (not included) with overrun, adjustable from 3-25 minutes
• ELEGANCE 150 MHY Smart
  With humidity sensor and overrun timer (both adjustable)

In the Box

• Fan unit
• Indoor cover
• Back-draught shutter
• Mounting screws
• User manual

Typically required for wall installation

• Duct Ø150mm, max. 3m
• Outdoor grill/ Trade seal*

*Check with local council for acceptability
