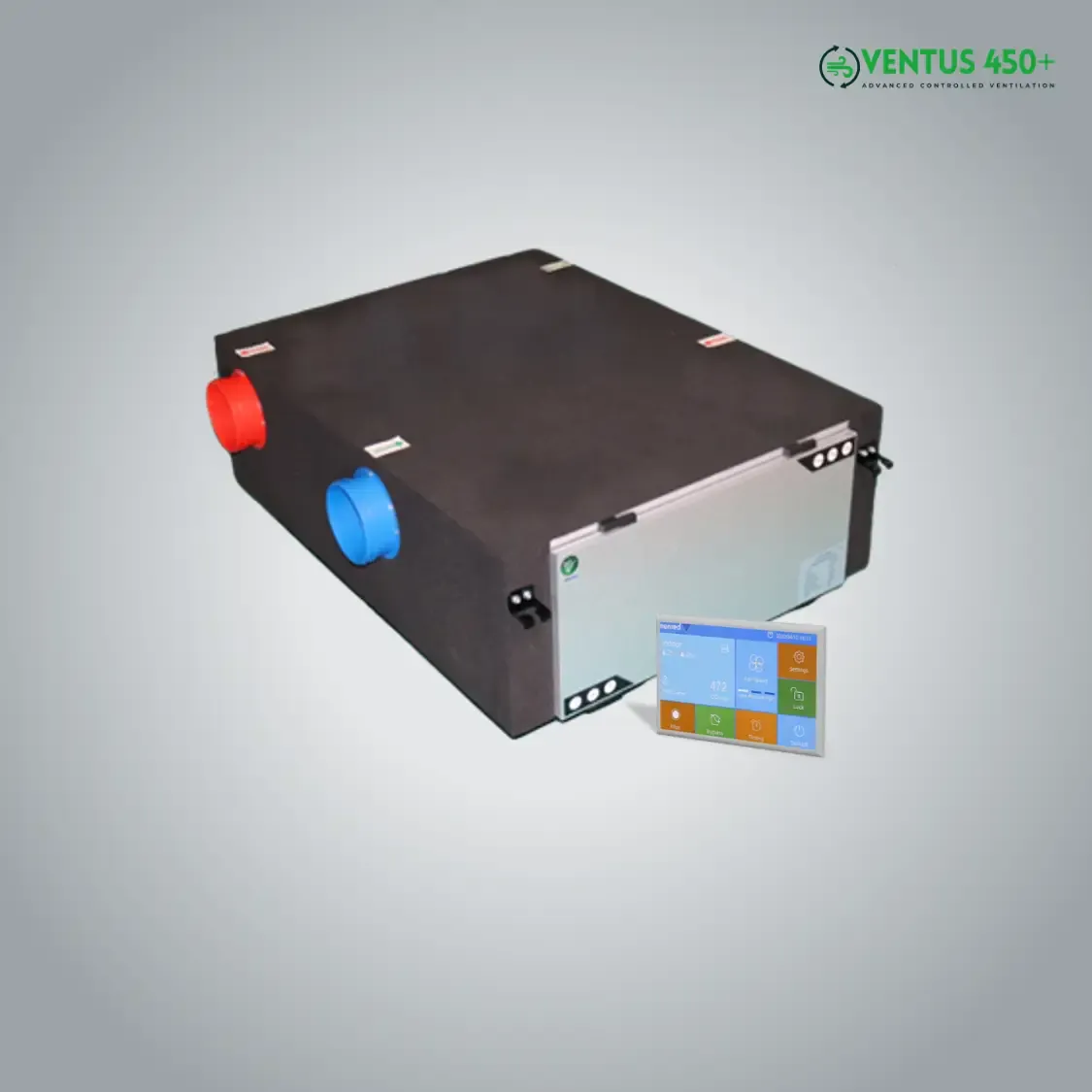

Solutionair Ventus 450 – Horizontal Ventilation Unit

Ventus 450 is a MVHR unit, designed by Solutionair for the New Zealand market which incorporates latest technology and components from world-leading supplier. Its powerful EC-fans and horizontal design makes the unit ideal for most of the single level NZ family houses.

Highlights

• Counter flow heat exchanger from Recair Netherlands (now Zehnder)
• EC-fans from ebm-papst Germany

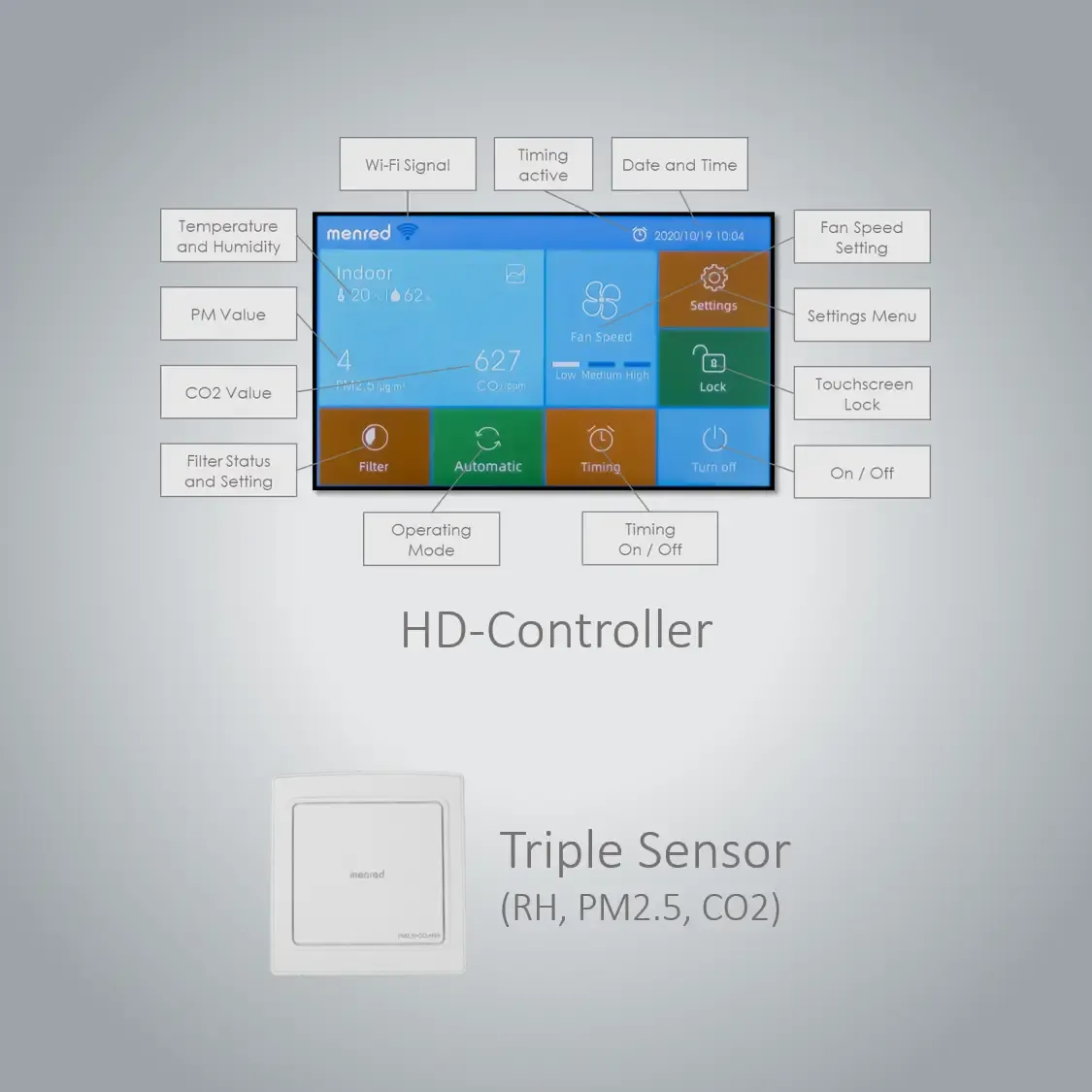

• HD Display Controller with touch screen
• Ventilation on demand (Sensor controlled)
• Triple-Sensor (RH, PM2.5, CO2)
• Summer By-pass
• Available as commercial through-wall version
• High-grade F7 filter for supply air (G4 for exhaust air)
• Meets G4 and Healthy Home Standard
• 5-year warranty

Typical Application

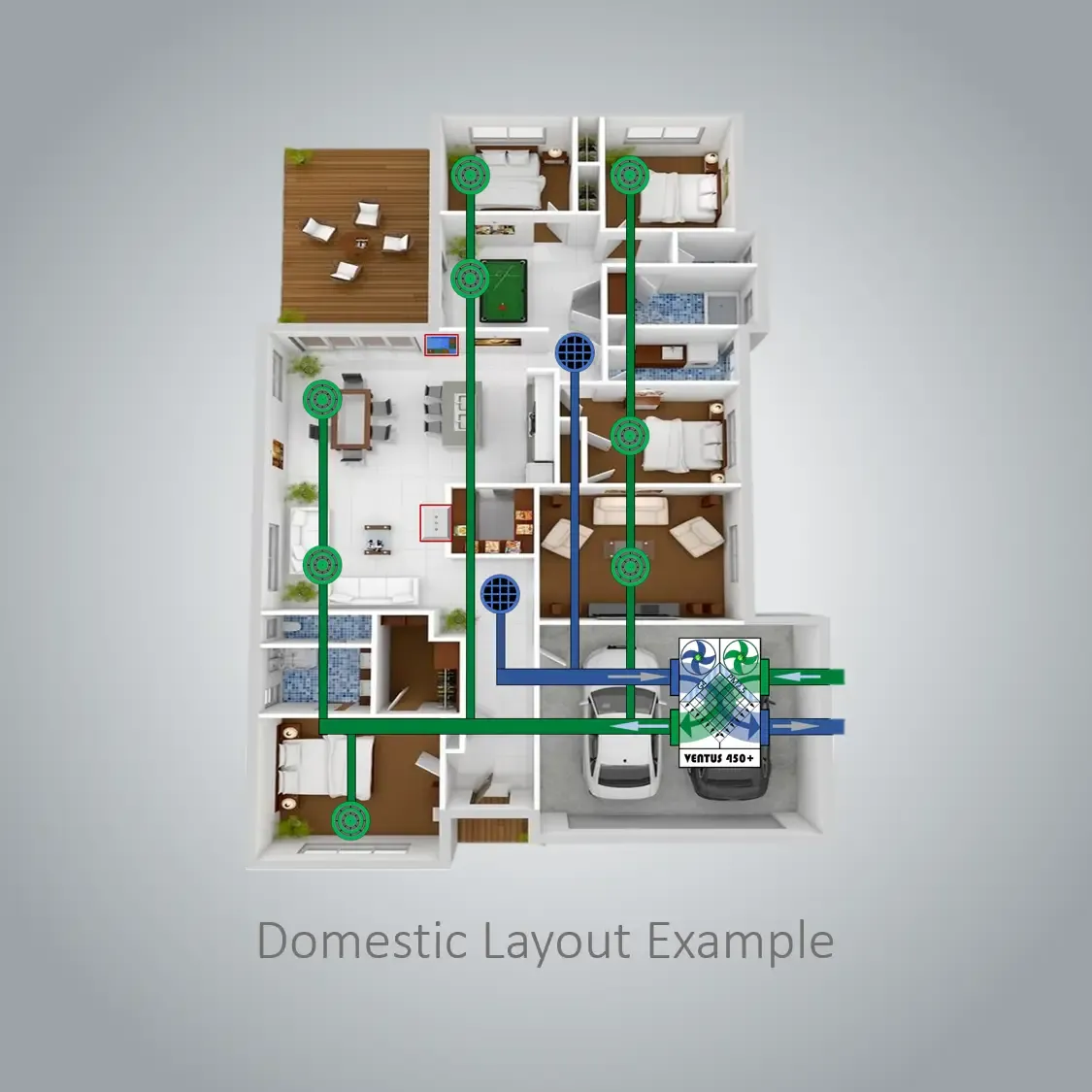

• Domestic: Family houses with attic space
• Commercial: Office space, training rooms
• Includes dedicated bathroom, kitchen and laundry extraction

Performance

• Airflow: 450 m³/h (max.)
• Pressure: 460 Pa (max.)

Versions

• Solutionair Ventus 450+ (unit only)
• Ventus 450+ Kit 12
  Kit-Set includes flex ducting, plenum, vents and grills for up to 12 rooms

• Ventus 450+ Kit 9
  Kit-Set includes flex ducting, plenum, vents and grills for up to 9 rooms

• Ventus 450+ Kit 6
  Kit-Set includes flex ducting, plenum, vents and grills for up to 6 rooms

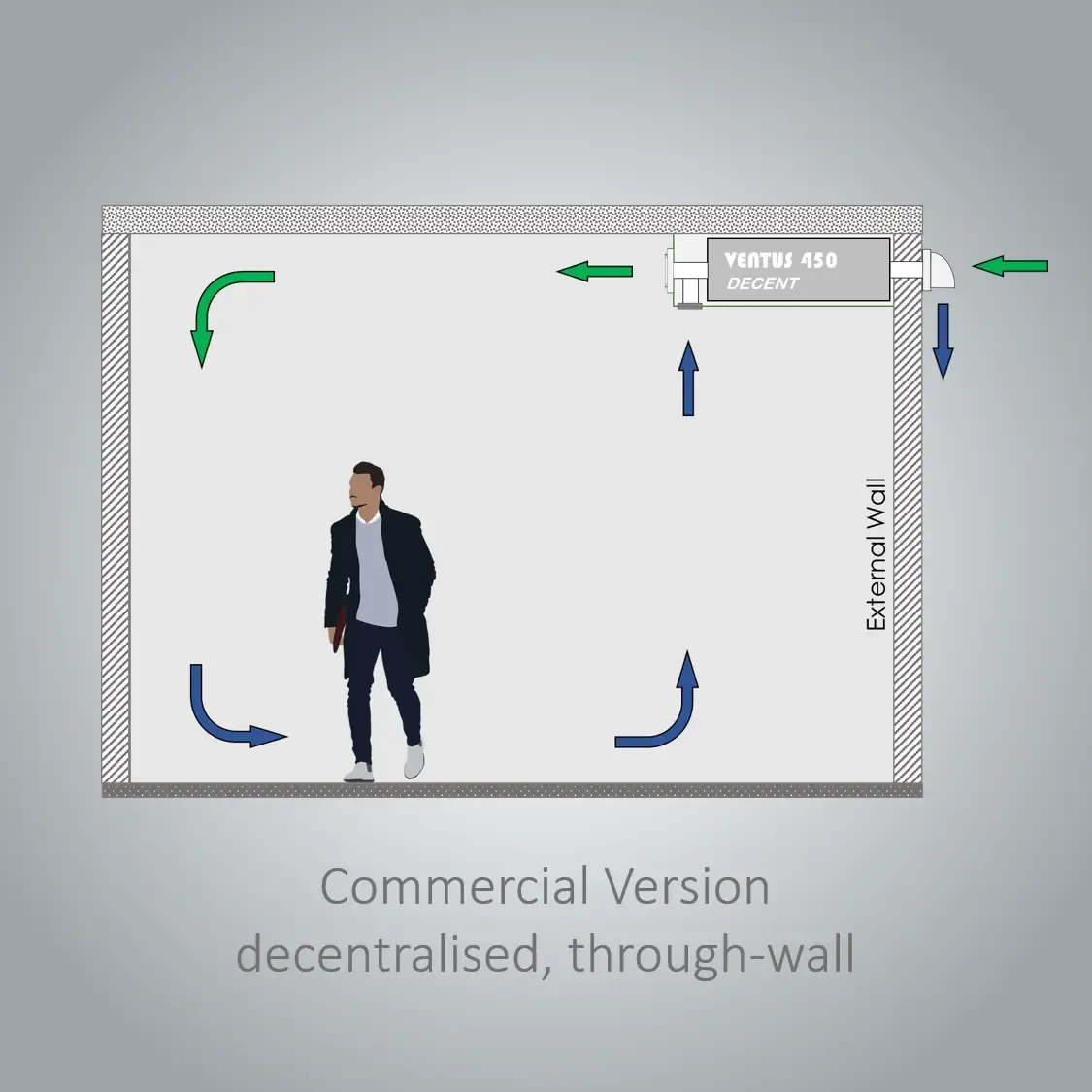

• Solutionair Ventus 450 DECENT
  Commercial version – available on request

In the Box

• MHRV Unit
• Touchscreen Controller
• Triple Sensor (Wall mounted)
• User manual
• Kit 6/ 9/ 12: Flex ducting, plenum, vents and grills

Typically required for domestic installation

• Tools and consumables (e.g. duct tape and screws)
• Mounting install unit earthquake safe (e.g. steel rods)*
• Roof cowl/ Outdoor grill/ Trade seal*

*Check with local council for acceptability
